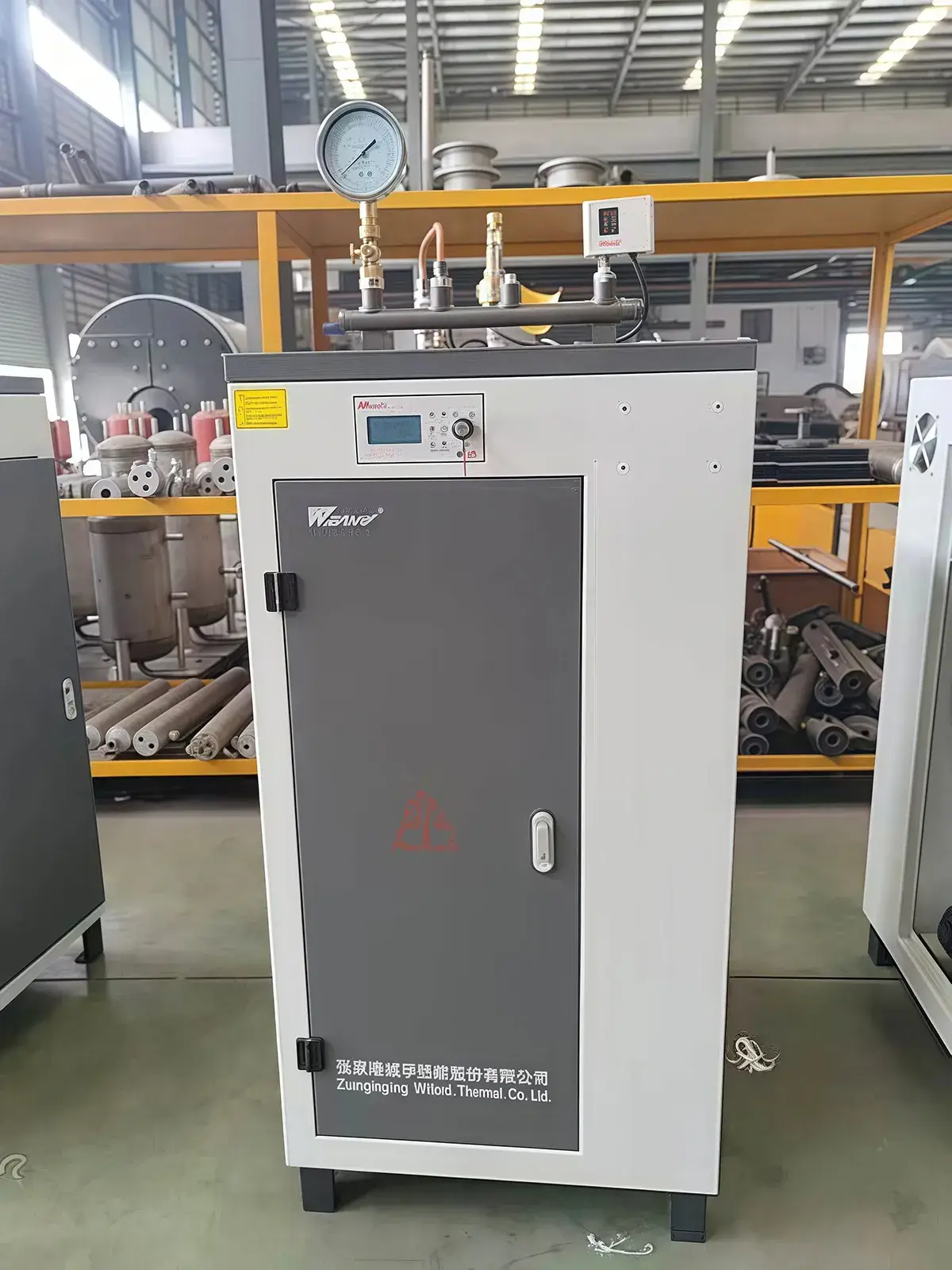

Sterilization Steam Unit
(Sanitary Steam Generator, Incoloy800)
The sterilization steam unit supplied by Fengze Biotechnology is designed to meet steam sterilization requirements for bioreactors up to 1000L. It serves as a standard auxiliary system, providing a stable supply of sanitary steam for fermentation processes.
Product Advantages
- The fully upgraded intelligent HMI provides real-time status monitoring and integrates multiple redundant protection mechanisms to ensure safe and reliable system operation.
- Heating elements are constructed from Incoloy 800 (nickel-based alloy), offering exceptional corrosion resistance.
- The steam unit supports automatic sequential switching of heating groups to balance operating hours across elements, effectively extending the overall service life of the components.
- A high-sensitivity water level monitoring system adapts to diverse water quality requirements, while multi-stage pressure controls ensure a consistent and stable steam output.
- Available in multiple specialized versions, including Sanitary, Remote Access, and Smart IoT.
- Comprehensive support for international certifications is available based on project requirements, including ASME, CE, MOM (Singapore), DOSH (Malaysia), WorkSafe (Australia), and CU-TR (Russia).
| Model | Bioreactor Volume (L) | Steam Generator Power (kW) | Evaporation Capacity (kg/h) | Equipment Weight (kg) |
| 1 | 10 | 6 | 8 | 80 |
| 2 | 30 | 9 | 12 | 82 |
| 3 | 50 | 12 | 16 | 85 |
| 4 | 100 | 24 | 35 | 171 |
| 5 | 200 | 36 | 50 | 171 |
| 6 | 300 | 55 | 80 | 171 |
| 7 | 500 | 72 | 100 | 175 |
| 8 | 1000 | 144 | 125 | 175 |
