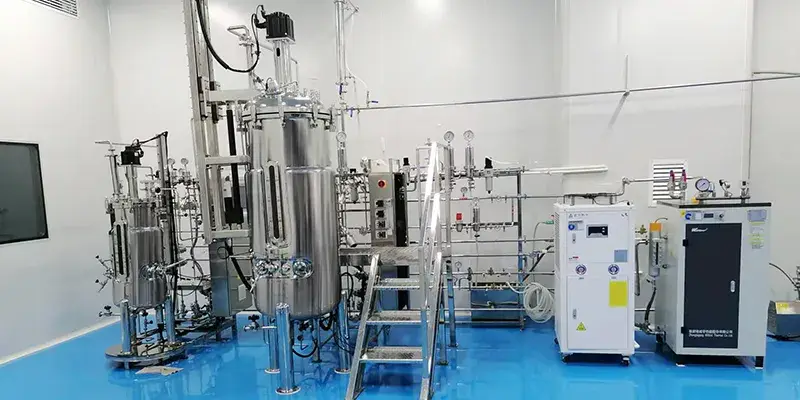

Automatic Multistage Continuous Bioreactor
(Stainless Steel Bioreactor System)
Watch Videos
The Automatic Multistage Continuous Bioreactor is a bioreactor system that combines scalability with integrated control. Designed specifically to simulate the microbial process scale-up, it can operate multiple fermentation stages (continuous or parallel) simultaneously, ensuring a smooth transition of processes from laboratory development to industrial production.
Key Parameters
-
Capacity:
- First-Stage Seed Vessel: 30L / 50L / 100L
- Fermentation Vessel: 300L / 500L / 1000L / 2000L
- Customizable range: 5L - 1000L, supports multi-stage customization
- Vessel Material: SUS316L / SUS304 Stainless Steel
- Surface Finish: Inner surface High-Precision Polish (Ra≤0.4); Outer surface polish (Ra≤0.6)
- Working Volume: 30% - 75%
- Temperature: Heating/Cooling dual control; Precision: ±0.2℃
- pH: 0-12 (±0.01), Bi-directional Auto-Regulation (Acid/Alkali)
- DO (Dissolved Oxygen): 0-200% (±0.1)
- Sterilization: Fully Automatic SIP (Steam-In-Place). Includes sterilization timing, pressure holding, and independent filter sterilization
- Pressure: 0 - 3 bar (Precision 0.01 bar), supports digital setting and automatic regulation
FZ-DS Series Multistage Fermenter (Cost-Effective)
It is a high-cost-performance series that features full automation for temperature and pressure, while flow rate is controlled manually.
| Model | ||||
| Control Functions | Temperature | Measure & Control | Seed Vessel: 30L / 50L / 100L |
Fermentation Vessel: 300L / 500L / 1000L / 2000L |
| PH | Measure & Control | |||
| DO | Measure & Control | |||
| Agitation Speed | Variable Frequency | |||
| Sterilization | Automatic | |||
| Pressure | Measure & Control | |||
| Flow Rate | Manual | |||
| Acid/Alkali | Auto-Control | |||
| Foam Control | Auto-Control | |||
| Feeding | Peristaltic Pump | |||
FZ-ES Series Multistage Fermenter (Advanced)
Features advanced automation capabilities, including full automatic measurement and control of flow rates and pressure, allowing for fully simulating the operation of large-scale industrial vessel operations.
| Model | ||||
| Control Functions | Temperature | Measure & Control | Seed Vessel: 30L / 50L / 100L |
Fermentation Vessel: 300L / 500L / 1000L / 2000L |
| PH | Measure & Control | |||
| DO | Measure & Control | |||
| Agitation Speed | Variable Frequency | |||
| Sterilization | Automatic | |||
| Pressure | Measure & Control | |||
| Flow Rate | Measure & Control | |||
| Acid/Alkali | Auto-Control | |||
| Foam Control | Auto-Control | |||
| Feeding | Peristaltic Pump | |||
Please find below some examples of customized FZ-ES series multi-stage fully automatic fermenter that we have supplied to clients.

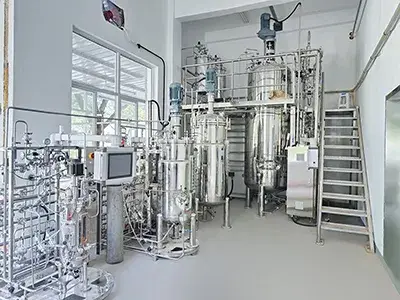

FZ-ES-30L-300L (2-Stage Automatic Fermenter)
- Seed Vessel: 30L
- Fermentation Vessel: 300L

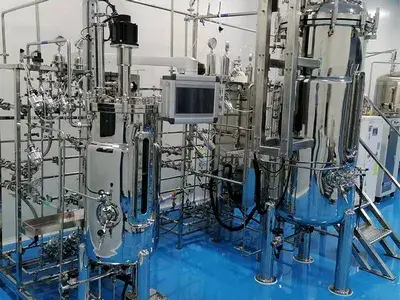

FZ-ES-50L-500L (2-Stage Automatic Fermenter)
- Seed Vessel: 50L
- Fermentation Vessel: 500L

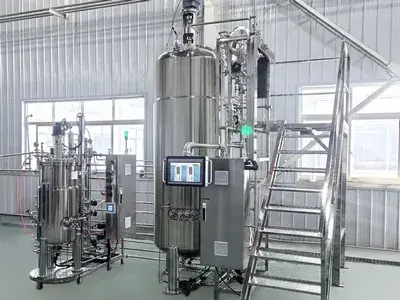

FZ-ES-100L-2000L (2-Stage Automatic Fermenter)
- Seed Vessel: 100L
- Fermentation Vessel: 2000L

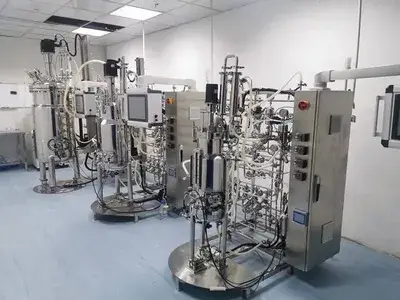

FZ-ES-30L-50L-200L (3-Stage Automatic Fermenter)
- Seed Vessel: 30L
- Fermentation Vessel: 50L, 200L

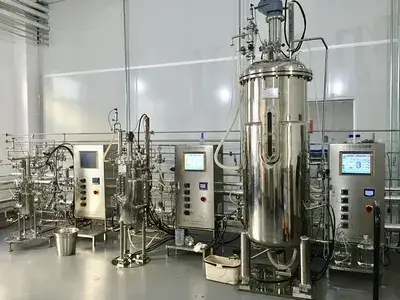

FZ-ES-10L-50L-500L (3-Stage Automatic Fermenter)
- Seed Vessel: 10L
- Fermentation Vessel: 50L, 500L

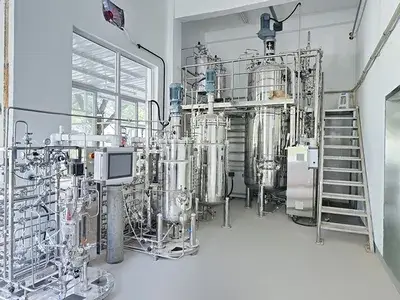

FZ-ES-10L-100L-1000L (3-Stage Automatic Fermenter)
- Seed Vessel: 10L
- Fermentation Vessel: 100L, 1000L

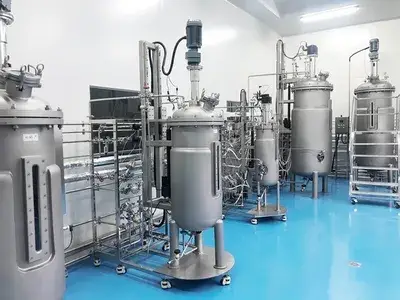

FZ-ES-10L-50L-100L-500L (4-Stage Automatic Fermenter)
- Seed Vessel: 10L
- Fermentation Vessel: 50L, 100L, 500L

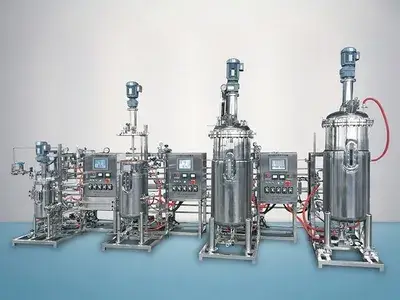

FZ-DS-30L-100L-300L (3-Stage Automatic Fermenter)
- Seed Vessel: 30L
- Fermentation Vessel: 100L, 300L

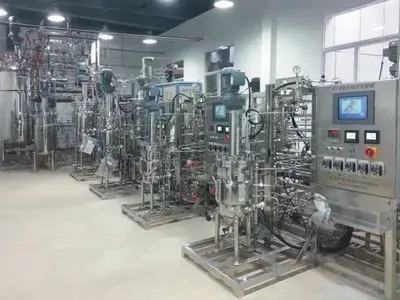

FZ-DS-10L-100L-1000L (3-Stage Automatic Fermenter)
- Seed Vessel: 10L
- Fermentation Vessel: 100L, 1000L
Technical Documentation Download
